  • Additional Search Coil for Pulse Induction (PI) metal detector Pulse Nova
  • Measuring depth: Down to 3 m (9.8 ft)
    Depth Performance at a glance
  • Use cases: Militaria detection, Industry
  • Detectable objects: Metal objects, ignores unwanted trash such as scrap bottle caps or aluminum foil
EUR 440,00
AED 1,812.80 | USD 620.00

zzgl. MwSt., Versandkosten und ggf. Zollgebühren

+971 50 3426171

Mo-Fr 9-17 Uhr Sa und So nach Vereinbarung

Sprachen: عربي (AR), English (EN), Deutsch (DE)

Weitere Kontaktmöglichkeiten »

Metal Detection at Depths of up to 3 m (9.8 ft)

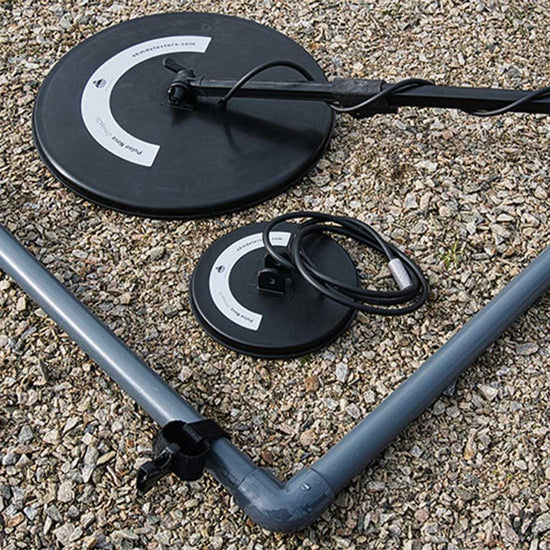

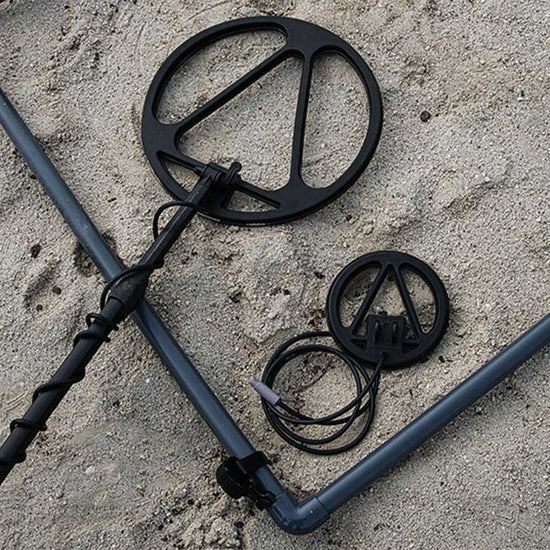

The standard equipment of the Pulse Nova PI metal detector comprises a large and a small dual-wound mono coil. These coils provide good depth performances in the detection of smaller metal objects such as gold and silver jewelry, but also ferrous metals in the underground.

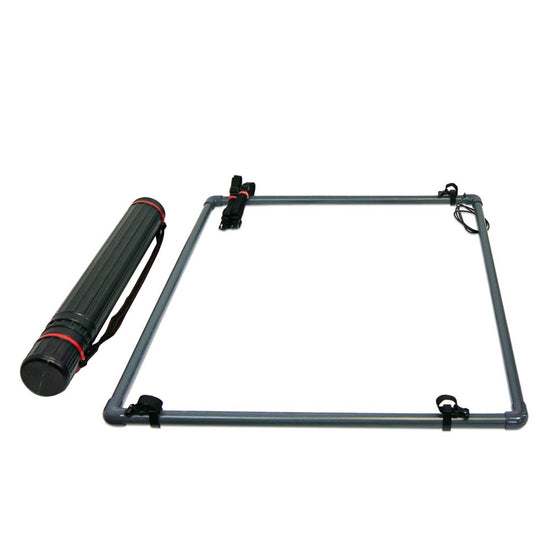

The additional Frame Coil Xi104 provides 1 m² of area coverage and thus scans a correspondingly large magnetic field. In this way, larger objects are detectable and maximum search depths can be achieved. The Frame Coil is used without the Telescopic Rod and can be carried by a single user or by two users.

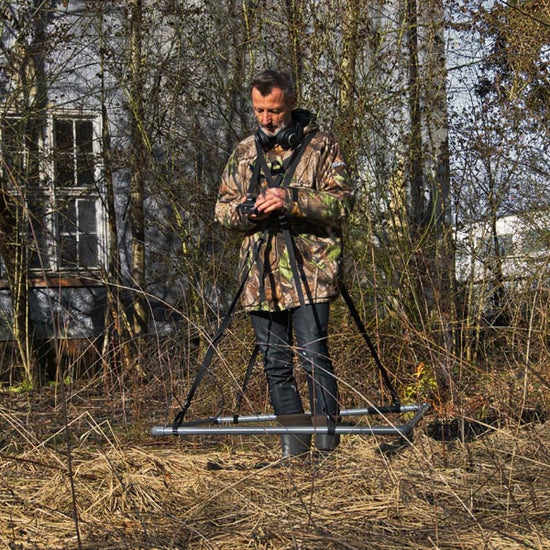

Pulse Nova Frame Coil Xi104 used by a single treasure hunter

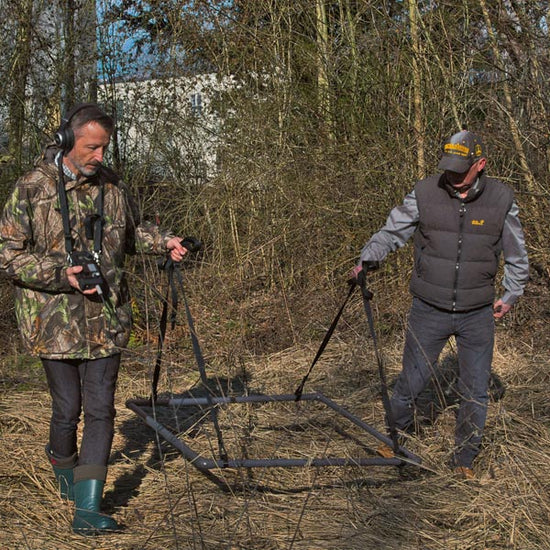

Pulse Nova Frame Coil Xi104 used by 2 treasure hunters

Coil tests under optimal conditions (test medium: air, sensitivity: maximum) achieved the following depth performances with the PI metal detector OKM Pulse Nova:


Search Coils Delta18 and Omega18 Search Coils Delta38 and Omega38 Frame Coil Xi104
Gold nugget ⌀ 5 mm 18 cm 17 cm -
Gold coin ⌀ 20 mm 23 cm 25 cm -
Gold ring ⌀ 22 mm 17 cm 34 cm -
Silver coin ⌀ 24 mm 22 cm 35 cm -
Silver coin ⌀ 40 mm 31 cm 45 cm -
1 EUR coin 28 cm 43 cm -
Beverage can 0,5 l 65 cm 110 cm 155 cm
Gas can 20 l 115 cm 180 cm 255 cm
Steel barrel DIN EN 210 115 cm 180 cm 310 cm

Agriculture

Archaeology

Explosive Ordnance Disposal Services

Forensics

Militaria Detection

Natural Gold Prospection

Public Services

Treasure Hunting

OKM Search Services

1x Frame Coil Xi104 for OKM Pulse Nova
1x Carrying straps with belt clips
1x Shipping Tube

Frame Coil Xi104

The technical data are average values. Minor deviations are possible during operation.
