Experience more balanced detector design, improved multilevel lighting and simplified wireless data transfer - for your convenient and efficient treasure hunt.
Intuitive control via touchscreen and hardware buttons facilitate the use of the compact detector. Individual settings such as Language and Brightness further improve the easy handling.
The treasure hunters' favorite OKM detector Rover C4 supports the Operating Modes Magnetometer, 3D Ground Scan, Pinpointer and Mineral Scan. This provides all necessary steps for a comprehensive exploration of the subsurface.
Both the easy-to-use Standard Probe and the high-resolution Super Sensor are equipped with the innovative LED Orbit. This exclusive feature indicates target objects such as ferromagnetic metal objects as well as voids in real-time by different colors.
Visualizer 3D Studio displays your Pinpointer scans in real-time and ground measurements in 3D. This allows you to determine the size, position and depth of target objects more precisely before excavation.

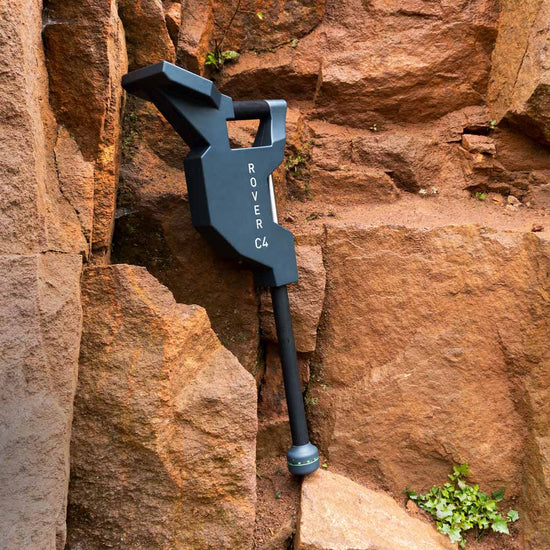

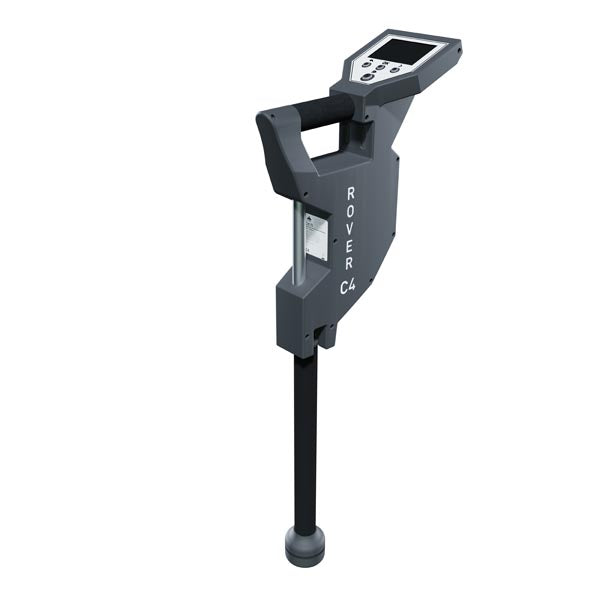

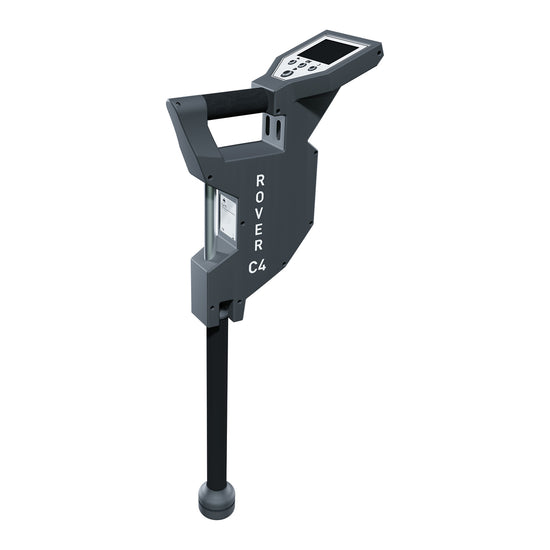

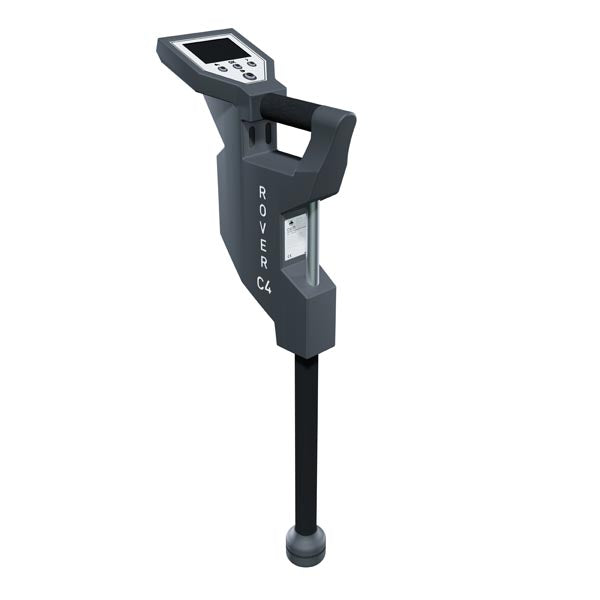

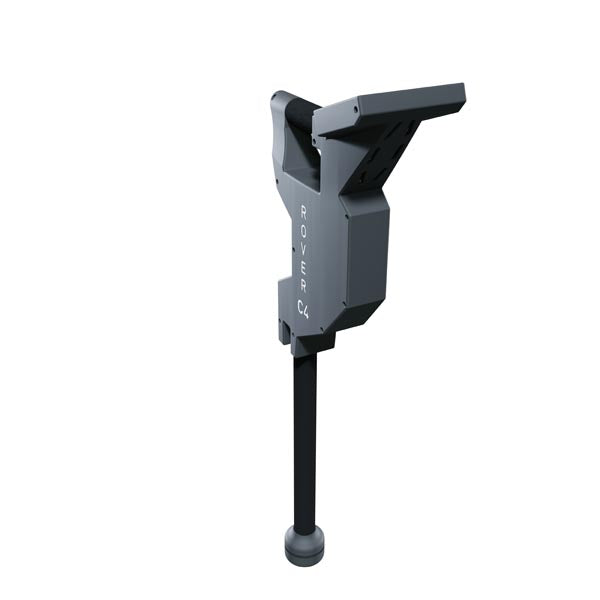

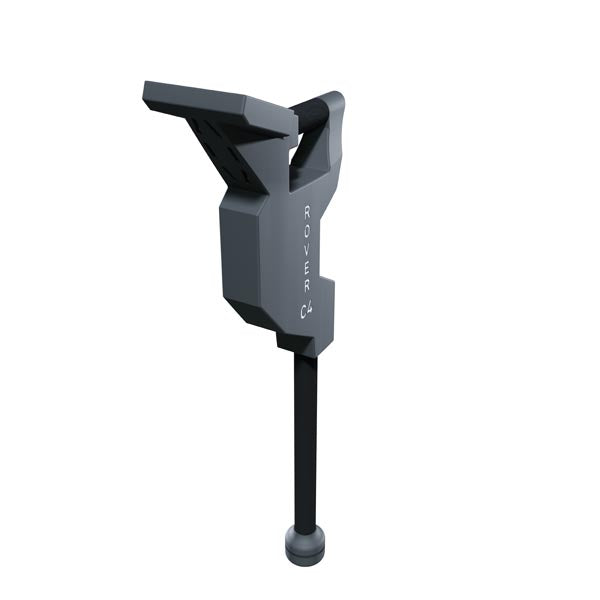

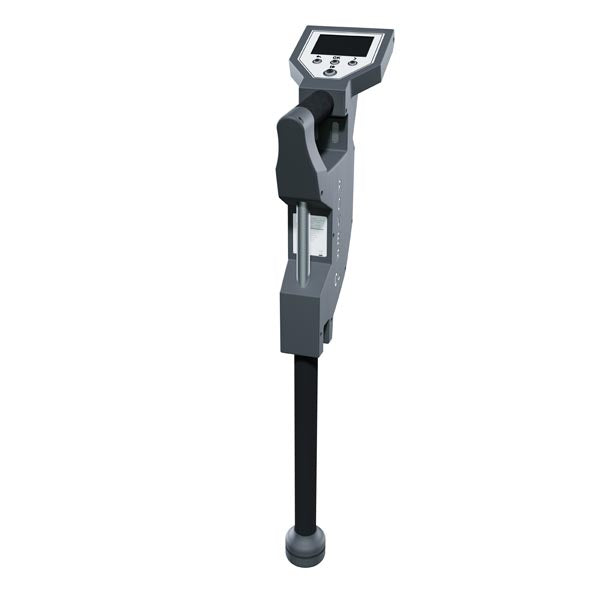

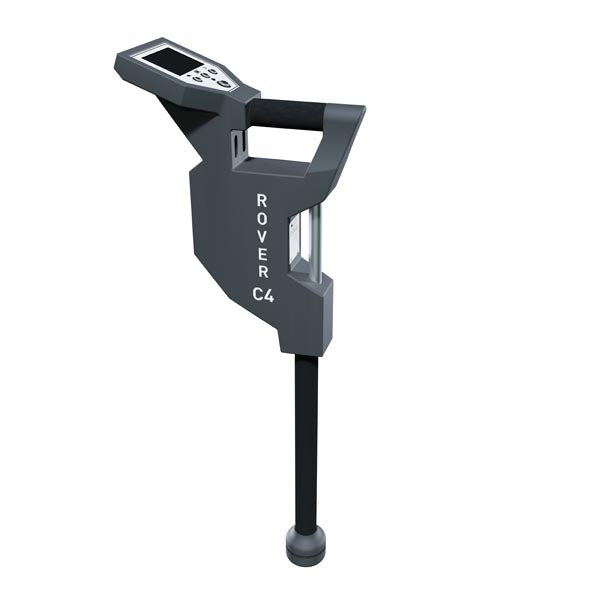

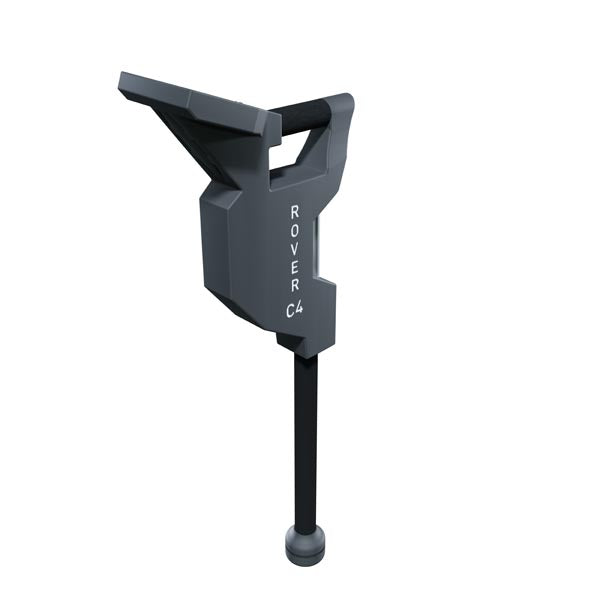

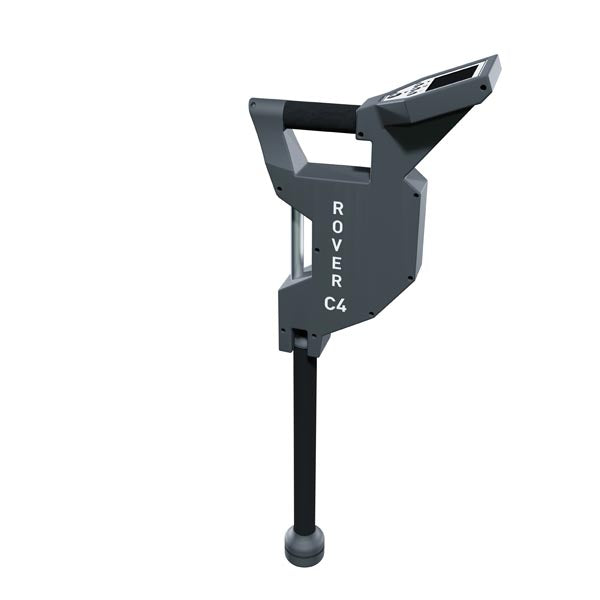

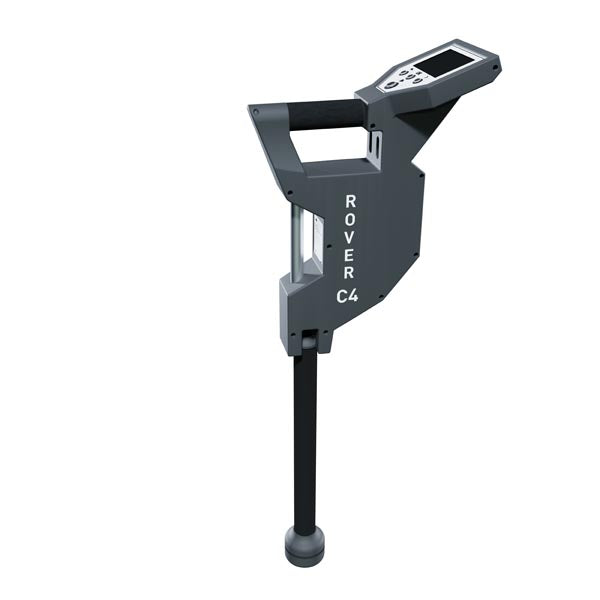

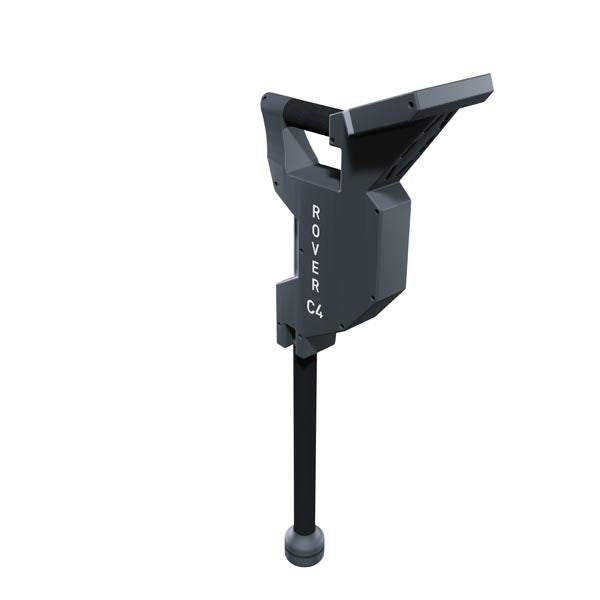

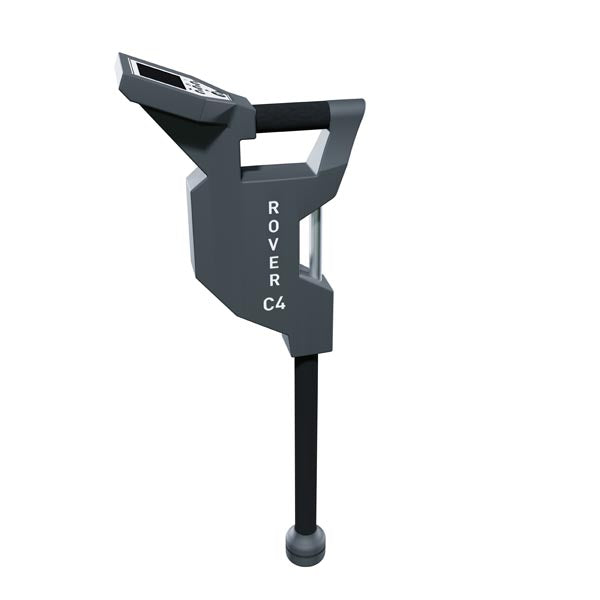

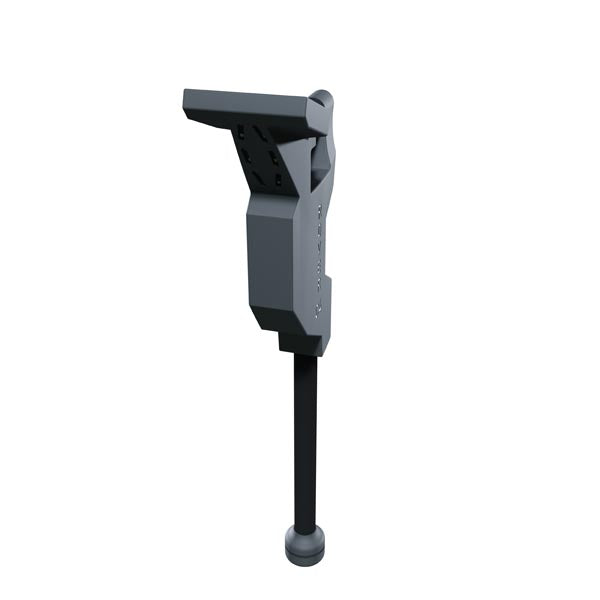

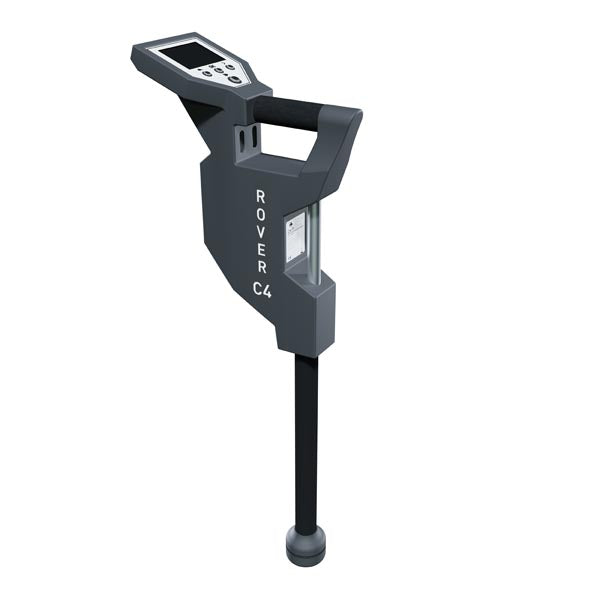

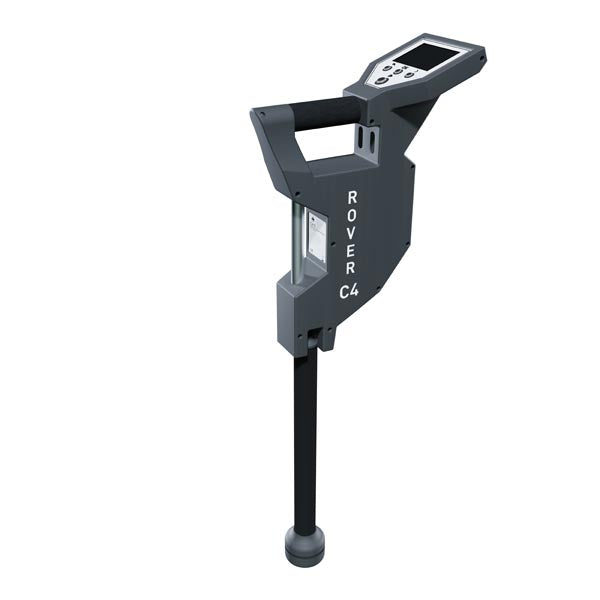

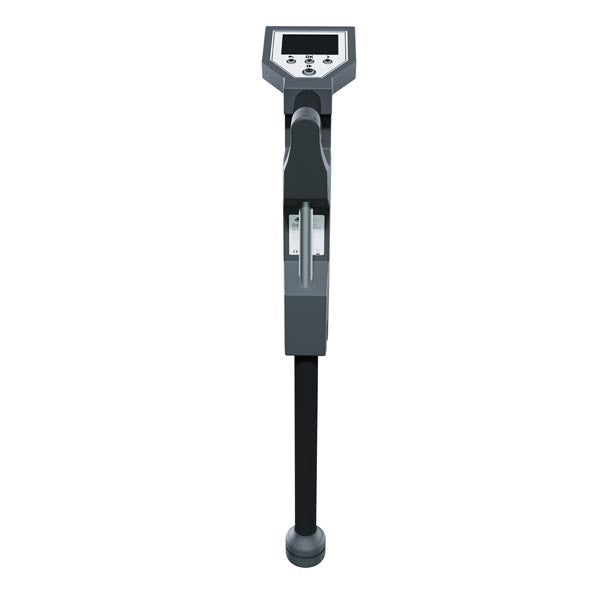

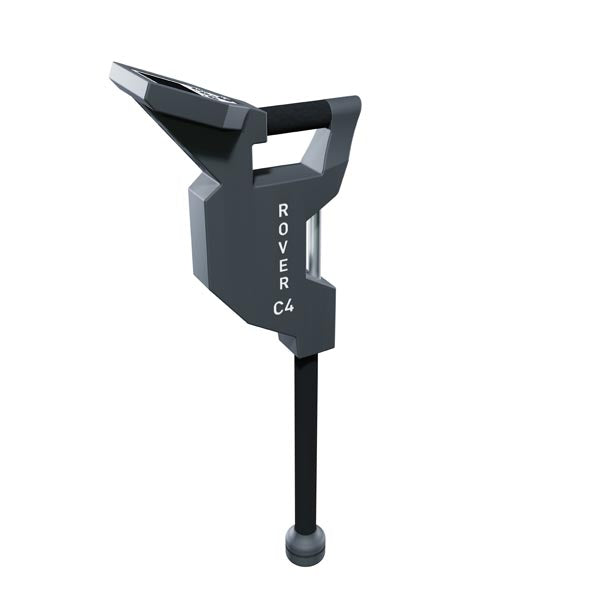

The ground scanner Rover C4 is an easy-to-use multi-purpose treasure and void detector. The detector supports treasure hunters and archaeologists in finding lost treasures such as coins, rings and jewelry as well as underground structures like tunnels, caves, chambers and graves. The measured data can be viewed and analyzed via Visualizer 3D Software.
The Rover C4 is controlled via color touchscreen with multilingual user interface. This allows a fast and easy operation and configuration of the metal detector. The detector can also be operated by using the alternative buttons.
After selecting your preferred language, it will be indicated in the toolbar icon with the 2-letter-code according to ISO-639-1. The Rover C4 allows detector users to choose from the following languages:
The embedded LEDs in the bottom side of the Control Unit are gradually adjustable based on your environment. This can be particularly useful when scanning in narrow and dark tunnels or at night.
After connecting the desired probe to the Rover C4 Control Unit, the detector is ready to scan.
The Standard Probe can be used for the operating modes 3D Ground Scan and Magnetometer. It is attached directly to the unit and thus very easy to carry.
The Super Sensor is used for all operating modes including Mineral Scan and Pinpointer. Moreover, it provides 3D ground scan images in higher resolution. It is connected via cable and carried separately.
The Super Sensor and Standard Probe are equipped with an innovative LED Orbit that indicates underground targets immediately during the scan. This basic target discrimination visualizes detected metals and voids in different colors.

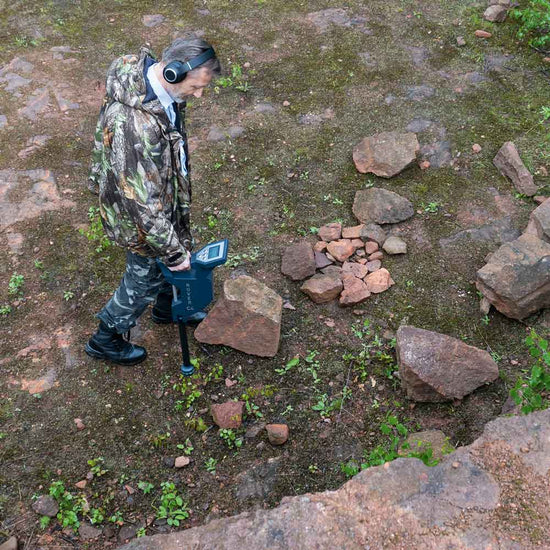

One of the most versatile operating modes in our 3D metal detectors is 3D Ground Scan. This function is used to scan a rectangular area to obtain measuring data from underground structures and objects.
However, in order to perform extensive ground measurements and achieve the maximum detection performance, we recommend using the operating modes Magnetometer, 3D Ground Scan and Pinpointer in succession as follows. The Mineral Scan mode is a Rover C4 add-on for gold prospectors.

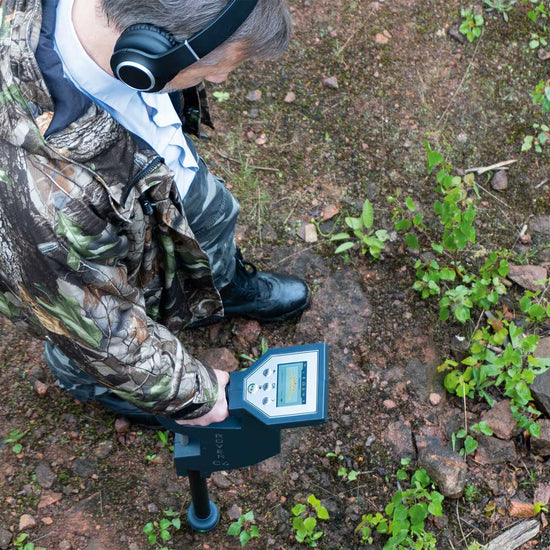

Use Magnetometer to clear the scan field of small metal items like nails, cans, screws and wires near the surface.
3D Ground Scan provides a graphical measurement of any area for further analysis in the detection software Visualizer 3D Studio.
With Pinpointer detectorists locate buried coins, rings, jewelry and similar treasure objects and artifacts more precisely.
Mineral Scan is used to locate natural gold deposits.
The fewer metal items near the surface, the better your 3D Ground Scan results. After clearing your scan field with Magnetometer, you can also find larger metal targets which are located deeper underground. Analyze your 3D Ground Scan images in Visualizer 3D Studio and locate the detected objects more precisely with the Pinpointer mode.
Detectable items that can be found with the 3D ground scanner Rover C4 are:
After transferring your 3D Ground Scans and Mineral Scans to the notebook with Visualizer 3D Software, the scan data are ready for further analyses in order to:
The detected targets are represented by different colors. The color information will tell you if it is a ferrous metal (iron, steel), precious metal (gold, silver, bronze, copper) or a void structure (cave, tunnel, grave, chamber).
The software shows the position of the detected anomalies and – according to the chosen soil – how deep the target is buried in the ground.
Besides depth information, Visualizer 3D Studio can also calculate the dimensions of hidden targets and buried items.

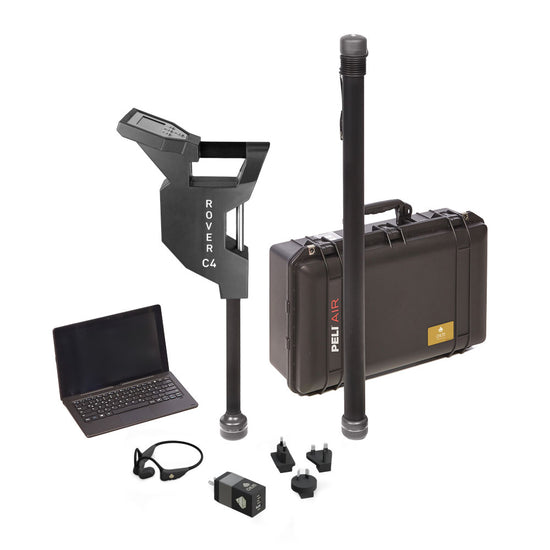

| 1x | Control Unit |
| 1x | Standard Probe with LED Orbit |
| 1x | Super Sensor with LED Orbit |
| 1x | Pre-configured Windows Notebook |
| 1x | USB Flash Drive with OKM Visualizer 3D Studio Standard Edition |
| 1x | Bluetooth Headphones incl. charging cable |
| 1x | Charger with charging cable |
| 1x | Travel Adapter |
| 1x | Protector Tube |
| 1x | Waterproof and shock-resistant Protector Case |
| 1x | Quick Start Guide |
