3D Metal Detector for Treasure Hunters and Gold Seekers

The metal detector and 3D ground scanner Evolution NTX can be used by treasure hunters, gold seekers, metal detectorists and archaeologists who are looking for buried objects, hidden artifacts or other lost items like:

• Lost valuables (rings, coins, jewelries, wedding bands)
• Buried treasures and artifacts
• Ancient boxes, chests, chambers and sepulchers

Unlike other metal detectors, the Evolution NTX can process graphical 3D images of underground treasure hoards and detected anomalies. Thus, you can determine size and depth of potential finds before digging. The deep penetration capability is just another advantage of our 3D ground scanner. Many great treasure finds prove the potential of our metal detecting technology made in Germany.

3D Metal Detector for Treasure Hunters and Gold Seekers

The successor of Evolution, Evolution NTX, is more compact and comes with improved features like rechargeable internal batteries, easier usability and more powerful sensor and coil technology.

Improved Usability

Based on our experiences as well as suggestions of many OKM users the new model has been improved and optimized in various aspects:

• Long-lasting and rechargeable batteries
• Color touchscreen with higher resolution
• Integration of Bluetooth headphones
• More compact and robust design
• Improved sensor and coil technology

Full color display with touchscreen and multilingual user interface allow an easier usability and setup of the metal detector Evolution NTX. The brightness of the screen can be adjusted individually.

VLF Metal Detector

The combination of our sensor technology with a VLF search coil allows detecting not only near-surface metals, but also deeply buried artifacts and treasure objects.

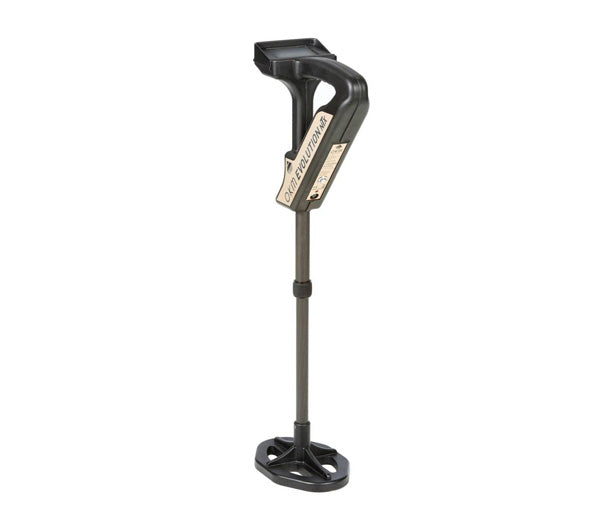

Evolution NTX with telescopic search coil: The length of the metal detector Evolution NTX can be adjusted to the individual body height of its user.

Ground Scan and Metal Detection

The 3D ground scanner Evolution NTX supports two operating modes to research the underground soils for hidden objects and structures. The length of the detector can be adjusted individually according to your own body height. Thus, you can make this metal detector your metal detector.

Starting at the main menu, you simply select one of the operating modes:

• Live Sound
  This operating mode activates the VLF metal detector to find shallow metal objects like coins, rings and other jewelry. Next to an acoustical output, you can also see a simple graphical indication of the signals.
• 3D Scan
  This operating mode is used to conduct graphical 3D ground scans. All scan data is stored into the device’s memory. This information can be transferred to the Visualizer 3D Software to generate graphical 3D images of underground objects and structures.

3D images via Visualizer 3D Software

The metal detector and 3D ground scanner Evolution NTX can be used by treasure hunters, gold seekers, metal detectorists and archaeologists.

With the 3D scan function and the software Visualizer 3D you can create a 3D graphic of the underground and find buried coins, rings, jewelry and similar treasure objects and artifacts. Especially metallic objects can be detected successfully. Buried objects are indicated by different colors in a graphical 3D representation.

1x Control Unit

1x Pre-configured Windows Notebook

1x USB Flash Drive with OKM Visualizer 3D Studio Standard Edition

1x Bluetooth Headphones incl. charging cable

1x Charger with charging cable

1x Travel Adapter Set

1x Waterproof and shock-resistant Protector Case

1x Quick Start Guide

The actual scope of delivery is subject to technical developments or specific model configurations and can differ from depicted components.

Control unit

• Dimensions (H x W x D): 540–810 x 150 x 280 mm
• Weight: approx. 1.5 kg
• Input voltage (max.): 19 V DC, 3.16 A, 60 W
• Processor / Main CPU: Cortex M3, 32 MHz
• Processor / Slave CPU: Cortex M0, 24 MHz
• Display: 3.5” Resistive touch, 480 x 320 Pixel
• Display CPU: Cortex M3, 32 MHz, 128 KB RAM
• Data memory: 4 GB
• Sample rate: 1024 values / second
• Measurement resolution: 16 bit
• Operating temperature: –10°C – 60°C
• Storage temperature: –20°C – 70°C
• Audio: Internal speaker / Bluetooth
• Waterproof: No
• Technology: GST / EMSR
• Sensor technology / Coil technology: SCMI-15-D / VLF
• Air humidity: 5% – 75%

Data Transmission

• Technology: Bluetooth 5.1
• Frequency: 2.402 – 2.480 GHz
• Maximum Transfer Rate: 1 Mbps
• Maximum Transmitting Power: +8 dBm
• Maximum Range: approx. 10 m

Computer Minimum Requirements

• Interface (data transmission): USB 2.0
• Free disk space: minimum 250 MB
• Working memory (RAM): 2 GB
• Display: 1920 x 1080
• Processor: 1.2 GHz
• Graphics card: 1 GB RAM, OpenGL 3.3
• Operating system: Windows 10

The technical data are average values. Minor deviations are possible during operation.

---

---
